BATTERY LIFE ESTIMATION WITH CONFIDENCE

$199

Measuring real world battery life of your electronic device has never been easier. No more guessing!

Understanding the real battery life of a electronic device is a pain. It's especially hard when the device's current draw spans a range that is too large for typical instruments to measure continuously. This is particularly prominent in low power projects with devices that may need to last a year on battery, and where current consumption could range from sub-microamps in deep sleep to multiple amps when active.

WiSensor continuously captures current draw over an extremely wide range and provides software for deep analysis.

WiSensor gives you the confidence of knowing the real world battery life of your next electronic project. No longer would you need to guess.

measure1

Wide dynamic range

One continuous range: 0nA - 2.5A

measure2

Accurate

<0.1% error
24-bit ADC
500k samples per seocond

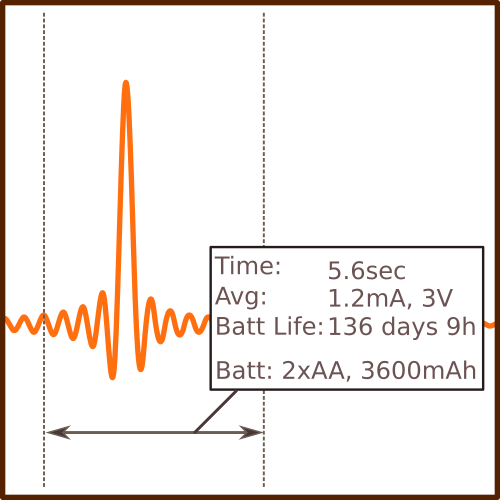

measure3

Powerful software

Fast
Simple to use
Deep analysis

How It Works

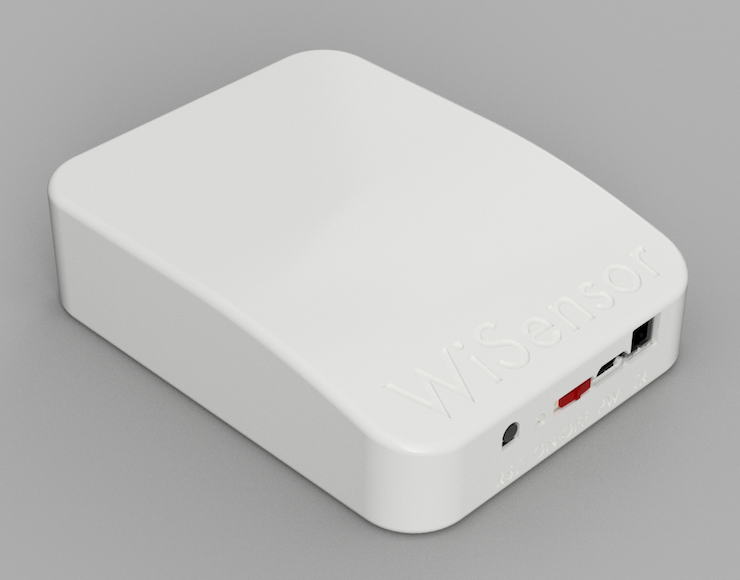

WiSensor

Connect to your device

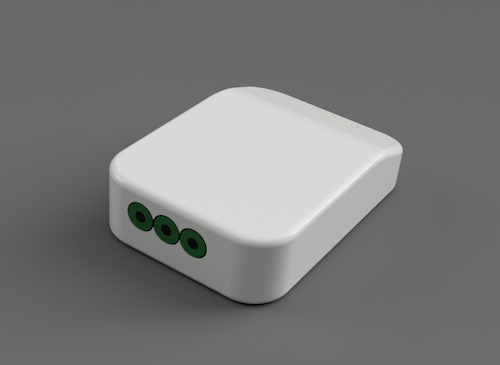

Simply connect the power source (such as a benchtop power supply) to WiSensor's input sockets using standard 4mm banana leads. Connect the device under test to the output sockets.

WiSensor connects to your computer with a USB-C cable. Power is supplied from the host computer through this USB connection. When you press the record button on your computer, all voltage and current readings are saved at up to 500k samples per second.

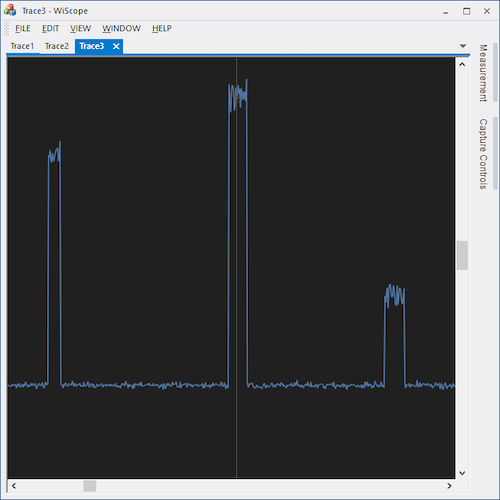

screencap

Record and analyze on WiScope

WiScope is the included companion software compatible with Windows 10.

Use WiScope to record current and voltage signals from WiSensor, review the captured data, analyze for power usage and automatically estimate battery life.

It's fast and simple to use, taking the hassle out of battery life estimation.

Datasheet

WiSensor is a wide dynamic range power measuring instrument. With high capture rate and bandwidth, WiSensor is able to capture brief events such as a radio transmit burst, or an interrupt service routine. The wide dynamic range enables accurate continuous measurement of ultra-low sleep current as well as high current events

Features

  • Wide dynamic current range, from 0nA to 2.5A
  • High bandwidth, high capture rate, allowing measurement of short transient events
  • Capture buffer limited only by PC memory
  • External trigger
  • Compact WiSensor unit

Applications

  • Accurate battery life calculation for IoT devices
  • Characterization of device power consumption in different modes
  • Optimization of power consumption
  • Debingging hardware or firmware power issues
  • Power consumption regression testing
  • Energy harvesting device design

WiScope

  • Host software for recording captured signals
  • Measure power consumption over time
  • Quickly visualize and zoom-in on important details
  • Analyze events
  • Turn-key battery life calculation
  • Export/import measured data to CSV
  • Supports Microsoft Windows 10

Specification

  • 1 continuous current range: 0nA - 2.5A
  • Current resolution
    • Better than 1 pA (at less than 2250nA)
  • Current accuracy (typical):
    • <2250nA: < +/-0.05%
    • 2250nA - 2250μA: < +/-0.05%
    • >2250μA: < +/-0.1%
  • Burden voltage: < 115mV
  • Voltage range: 1.5V - 12V
  • Voltage resolution: 1mV
  • Voltage accuracy: better than 1%
  • Bandwidth (-3dB): 200kHz
  • Sampling rate: 500ksps
  • External trigger: 3.3V TTL level (5V tolerant)
  • Temperature drift: < 30ppm / degC
  • Signal-to-noise: > 60dB
  • THD: < -60dBc
  • Power: USB-C 5V +/- 5%
  • Dimensions:
  • Weight:

Purchase

Purchase WiSensor from our online store.
